Tools (Beta)

📘

Note: AI Agent is available in Beta through our Gupshup’s internal Bot Solutions Team. To access the latest AI Agent modules in Bot Studio please contact Gupshup support or your respective Sales representative.

Introduction: Tools enable your AI Agent to perform dynamic actions, fetch real-time data, or integrate with external systems. They act as functional extensions of the agent’s capabilities—helping it go beyond static responses and enabling task execution, data retrieval, or logic-driven behavior.

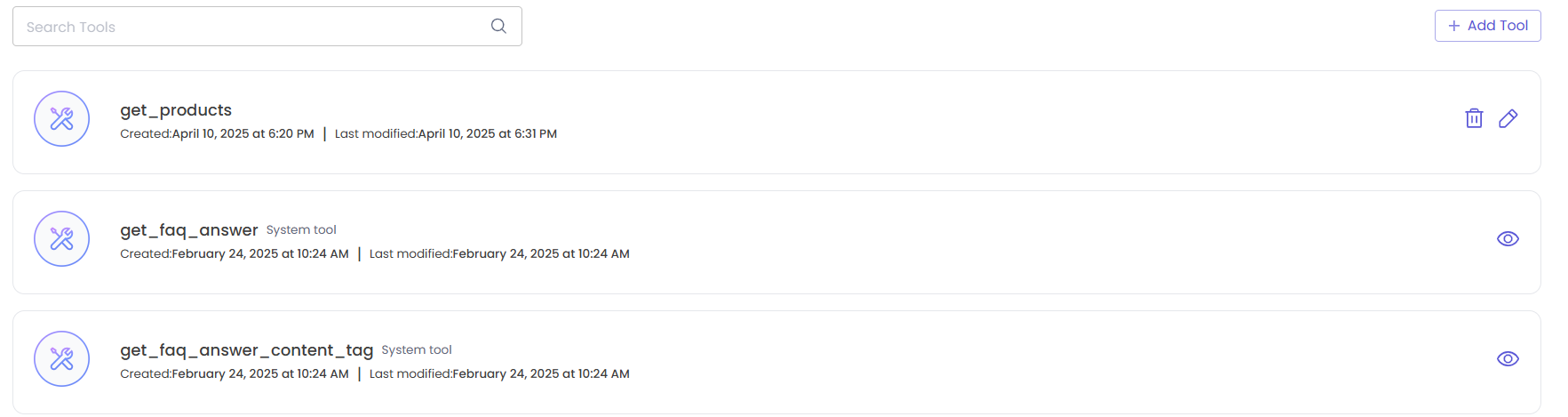

Type of Tools:Users have provision to use available system tools or configure custom tools

1. System Tools: Built-in pre-configured, non-editable tools. Example

• get_faq_answer_content_tag: Tool to get answers from specific content tags trained using the organization's knowledge base

2. Custom Tools: Related by users to extend the agent’s capabilities based on business-specific needs Ex. Users can create a tool to fetch order status, generate OTPs, calculate interest rates etc.

Tool Usage in Skills:Tools are referenced inside the skill instructions, where their purpose and tool call logic are described. During runtime:

• The agent calls the tool when specified conditions are met.
• Tool responses can be used to generate dynamic replies.
• Multiple tools can be used in a single skill if needed.

Steps to Create a Custom Tool:

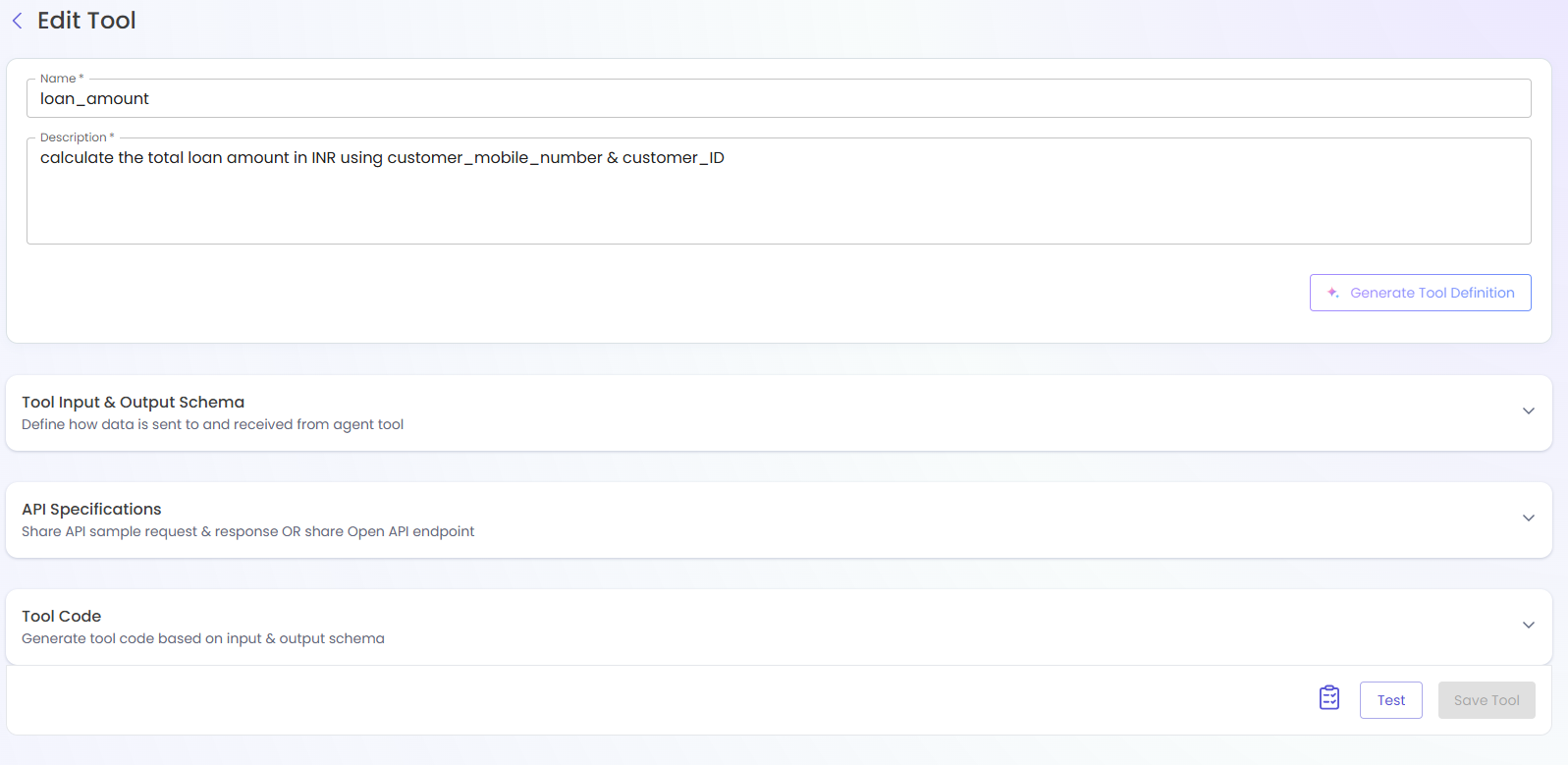

1. Provide Tool Name & Description: Provide a clear and descriptive name for the tool along with a description that captures its purpose and variables to be used in the tool schema
2. Define Input & Output Schema: Schema defines how data is sent to & received by the tool
3. Add API Specification (Optional) You can configure how the tool connects to an external system by sharing
   a sample API request & response OR adding OpenAPI endpoint
4. Generate Tool Code:Based on tool input & output Schema LLM generates the tool code.

Note: When tool code is generated Safety checks are run on the generated tool code to ensure code doesn't contain any harmful coding patterns, risky system-level commands, unsafe read/write actions and more. A tool that fails the safety checks can not be saved.

5. Tool Testing:Users can run a test tool code with sample input values to validate output. Save the tool which provides valid output.
