API Node: HTTP Status Code Branching

📌 What is it?

Lets you route bot logic differently based on API's HTTP response codes (e.g., 200 OK vs 500 Error).

🧭 How to Use

Step 1: Add & Configure API Node

• Set up your API call and test connection

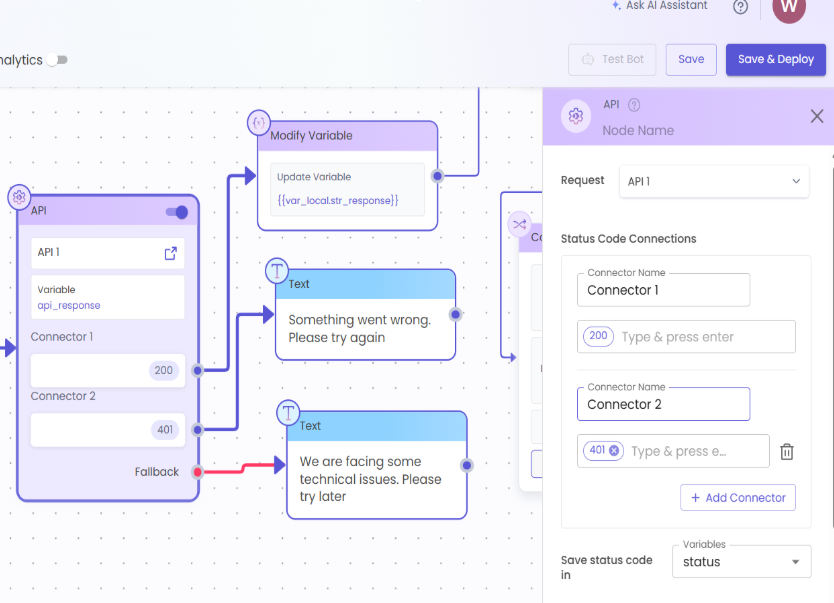

Step 2: Enable Status Code Branching

• Toggle ON the “HTTP Status Code” switch
• Add connectors and tag them with codes like 200, 400, 401, 503

Step 3: Connect Branches

• Route connectors to different nodes
• Untagged responses follow fallback

🧩 Use Cases

• Retry payment (503/504)
• Handle auth failure (401)
• Customize error response (400/500)
